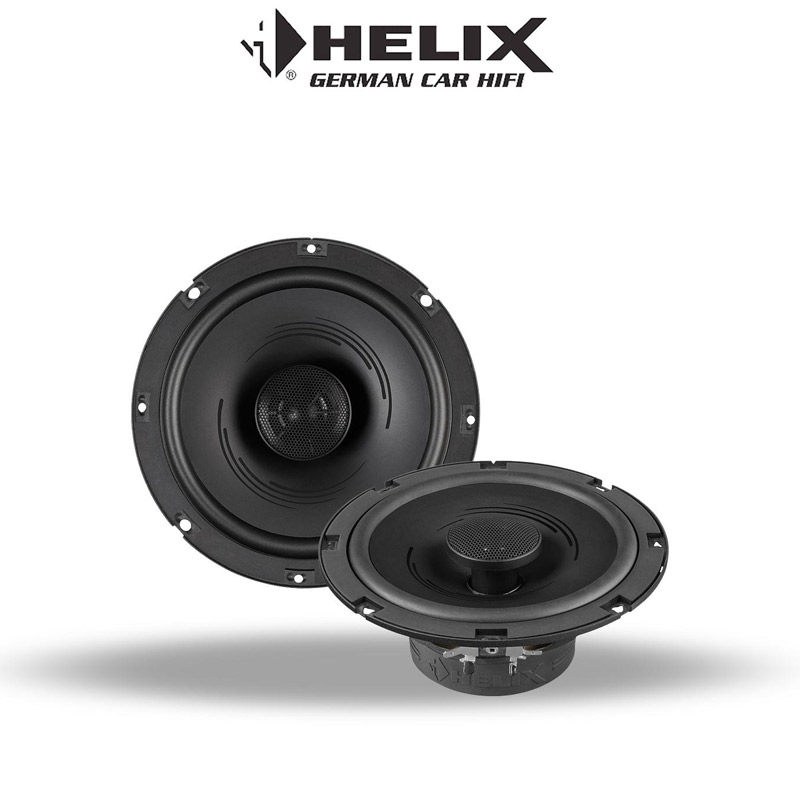

HELIX PF C165.2
Features
High sound quality with deep bass, clear mids and detailed highs
Powerful speaker system with high efficiency thanks to 3 Ohms technology
Low installation depths for trouble-free installation in almost all vehicles
Elegant HELIX design with black matt cone finish and black shiny Space Line styling
Tweeter
0.52” / 13 mm mylar dome and neodymium magnet for brilliant and clear treble response
Woofer
6.5” / 165 mm woofer with rigid cone made of injected polypropylene with embedded carbon fibers provides essential stiffness with a high inner damping
Powerful magnet system with optimum control for powerful and clear depths
Individual HELIX basket with additional ventilation holes for better voice coil cooling and high power handling
Crossover
Integrated with 6 dB slope
Technical data
Power RMS / Max. 60 / 120 Watts
Frequency response 60 Hz – 22,000 Hz
Impedance 3 Ω
Sensitivity 92.5 dB @ 2.83V / 1m
88.5 dB @ 1W / 1m
Cone material TW: Mylar
M: –
W: Injected polypropylene with embedded carbon fibers
Crossover Integrated, 6 dB slope
Outer diameter 165 mm / 6.50″
Installation diameter 142 mm / 5.59″
Installation depth 58 mm / 2.30″
Scope of delivery
2 x Coaxial speaker HELIX PF C165.2
1 x Mounting material
1 x Instruction manual
1 x Mounting pattern
